Floor Standing Single Chamber Vacuum Sealer

Products　　Vacuum Sealers　　 Chamber Vacuum Sealers　　VMS-32M

VMS-32M Floor Standing Single Chamber Vacuum Sealer

Heavy Duty Hydraulic Pressed Chamber Lid

Flat Working Platform

Optional Gas Purging Feature

Molded Coffee Beans Vacuum Pack

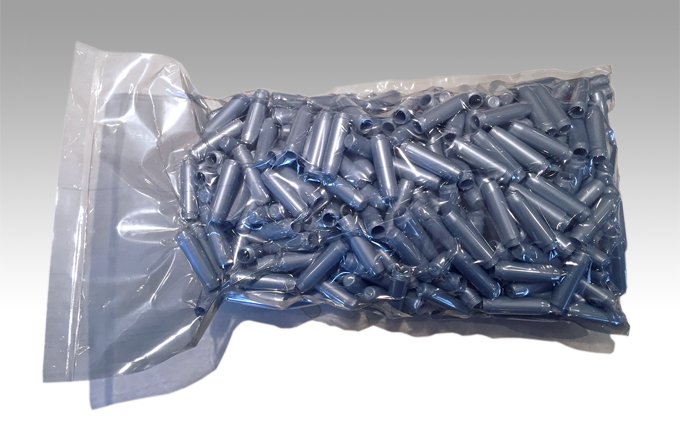

Plastic Injection Parts Vacuum Sealed Sample

Gloves Vacuum Sealed Sample

VMS-32M

Versatile vacuum sealers with two side of the sealing bar, mobility, and heavy duty usage. It is ideal for the packaging of several pouches per cycle of large sized products. The control system is powered by micro-controller with 20 programmable memory settings. The single chamber vacuum sealer is fully industrial grade stainless steel constructed, ideal for food, medical, electronics and industrial applications. It has flatten bed for hassle-free chamber wash down.

Download PDF

Features
Technical Specifications
Optional
Video

• Stainless Steel Chassis
• Powered by BUSCH vacuum pump
• Left and right sealing bar configuration
• High performance impulse sealing system
• Aluminum alloy sealing bar with bladder activated sealing
• Powerful & large diameter vacuum valve (To shorten vacuum time)
• Flat chamber for easy cleaning and sanitation, suitable for HACCP industry
• Water resistance control panel (IP-56)
• Powered by micro-controller with 20 programmable memory settings
• Oil change indicator
• Pump overload warning indicator
• Emergency reset system
• Easy Sealing Element and Teflon Tape replacement
• Easy cleaning

Model:	VMS-32M
Power:	Three Phase AC 415V, 50Hz
Dimension:	(L) 35 ½" x (W) 25 ¾" x (H) 39 ¼"
Machine Weight:	550 lb
Chamber Height:	6 ¼" (Effective Depth = 6")
Distance Between Sealing Bar:	26 ¼"
Sealing Bar Configuration:	Left & Right
Sealing Length:	20 ½"
Sealing Width:	6mm (Double Beam)
Maximum Vacuum:	-29 inHg
Vacuum Flow Capacity:	63 m³/H BUSCH Vacuum Pump

The following optional accessories are available for VMS-32M chamber type vacuum sealer.

- Vacuum Filter

- Gas Purging

- Soft Air Sensor
- High Pressure Sealing
- Pneumatic Lid Closing / Opening System With Safety Frame
- Other Sealing Width (10mm)
- Bi-Active Impulse Sealing System (Top & Bottom Heating)
- Digital Pressure Gauge

- Vacuum Pressure Control Option
- Other Voltage Configuration
