MPD Series Constant Heat Sealer

Aluminum Laminated Pouch

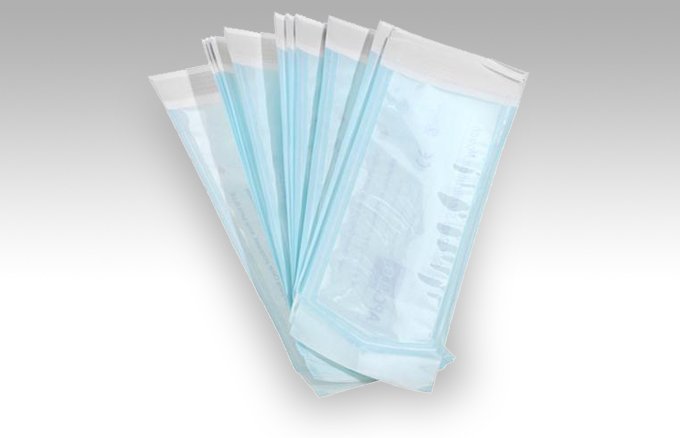

Tyvek Medical Pouch

Tyvek Medical Pouch Sealed Sample

Designed & Engineered in 3D Software

MPD Series

MPD Series Table Top Constant Heat Sealer is pneumatically operated and available in 400mm, 500mm or 600mm seal length. A variable timer and pressure regulator ensure precise control over the amount of heat time and seal pressure are applied to your package. With an outstanding level of heat sealing control system you can have confidence in sealing a wide range of materials including most medical Tyvek pouch and laminated foils.

Download PDF

Features
Technical Specifications
Optional
Video

• Clean room compatible
• Works with all popular microbial & moisture barrier bag materials
• Easy to operate
• Practically maintenance free
• Foot pedal switch operated
• Adjustable sealing time
• Adjustable sealing pressure
• Digital temperature controller
• Finger / object anti-pinch safety system
• Suitable for Tyvek medical microbial barrier pouch and other laminated films

Model:	MPD-400	MPD-500	MPD-600
Power:	Single Phase AC 230V, 50Hz	Single Phase AC 230V, 50Hz	Single Phase AC 230V, 50Hz
Dimension:	(L) 700mm x (W) 300mm x (H) 250mm	(L) 1350mm x (W) 900mm x (H) 360mm	(L) 1350mm x (W) 900mm x (H) 360mm
Seal Size:	(L) 400mm x (W) 10mm	(L) 500mm x (W) 10mm	(L) 600mm x (W) 10mm
Power Rating:	600 W	700 W	800 W
Air Requirement:	Minimum 5 bars	Minimum 5 bars	Minimum 5 bars
