Manual L-Type Sealer (Bottom Heating Type)

Products　　L-Type Sealers　　LS Series

LS Series Manual L-Type Sealer (Bottom Heating Type)

Bottom Heating Feature

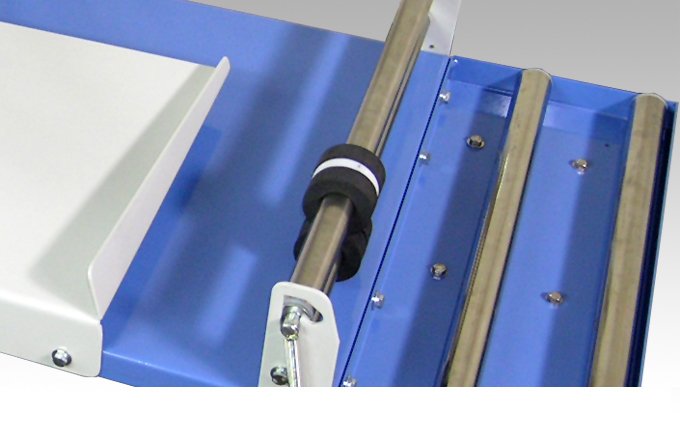

Film Perforator

Box Application

Cosmetic & Health Care Products

LS Series

LS Series Manual L-Type Sealer suitable for small to medium output requirements. Well sealing for center folded PVC or polyolefin shrink films with no smoke or residue.
The bottom heating type design Impulse Sealing System delivers consistent jaw pressure and identical seals time after time. It is possible to wrap almost all shapes of product in an fully sealed film wrap. This seal system works well with all shrink films to consistently deliver superior strength seals and reduce maintenance costs.

Download PDF

Features
Technical Specifications
Optional
Video

• Bottom Heating Element Configuration
• Impulse Sealing
• Pin wheel hole punch
• Easy Loading Film Dispenser
• Blade Type Heating Element
• Adjustable Sealing Time
• Easy Sealing Element and Teflon Tape replacement

Model:	LS-18	LS-24
Power:	Single Phase AC 230V, 50Hz, 1.3kW	Single Phase AC 230V, 50Hz, 1.7kW
Dimension:	(L) 1200mm x (W) 630mm x (H) 190mm	(L) 1350mm x (W) 780mm x (H) 190mm
Seal Bar Dimension:	(L) 450mm x (W) 450mm	(L) 600mm x (W) 600mm
Maximum Product Size:	(L) 400mm x (W) 400mm x (H) 50mm	(L) 550mm x (W) 550mm x (H) 50mm
