Double Chamber Vacuum Sealer

Products　　Vacuum Sealers　　 Chamber Vacuum Sealers　　VMD-32

VMD-32 Double Chamber Vacuum Sealer

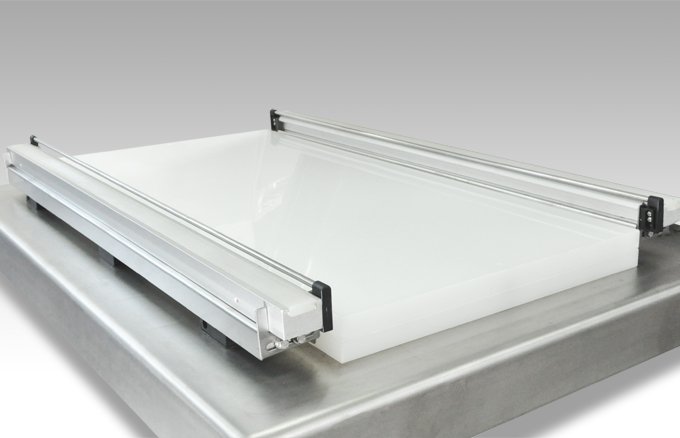

Flat Working Platform

Optional Gas Purging Feature

Molded Coffee Beans Vacuum Pack

Plastic Injection Parts Vacuum Sealed Sample

Gloves Vacuum Sealed Sample

VMD-32

The double chamber vacuum sealer has higher productivity than a single chamber vacuum sealers, as bag loading and unloading can be done while the other chamber is vacuuming. The control system is powered by micro-controller with 20 programmable memory settings. The double chamber vacuum sealer is fully industrial grade stainless steel constructed, ideal for food, medical, electronics and industrial applications. It has flatten work platform for hassle-free chamber wash down.

Download PDF

Features
Technical Specifications
Optional
Video

• Stainless Steel Chassis
• Powered by BUSCH vacuum pump
• High performance impulse sealing system
• Aluminum alloy sealing bar with bladder activated sealing
• Powerful & large diameter vacuum valve (To shorten vacuum time)
• Flat chamber for easy cleaning and sanitation, suitable for HACCP industry
• Water resistance control panel (IP-56)
• Powered by micro-controller with 20 programmable memory settings
• Oil change indicator
• Pump overload warning indicator
• Emergency reset system
• Easy Sealing Element and Teflon Tape replacement
• Easy cleaning

Model:	VMD-32
Power:	Three Phase AC 415V, 50Hz
Dimension:	(L) 74 ¾" x (W) 34 ¾" x (H) 41 ¼"
Machine Weight:	990 lb
Chamber Height:	7 ¾" (Effective Depth = 7")
Distance Between Sealing Bar:	20"
Sealing Bar Configuration:	Front & Back
Sealing Length:	31 ½"
Sealing Width:	6mm (Double Beam)
Maximum Vacuum:	-29 inHg
Vacuum Flow Capacity:	100 m³/H BUSCH Vacuum Pump

The following optional accessories are available for VMD-32 chamber type vacuum sealer.

- Vacuum Filter

- Gas Purging

- Soft Air Sensor
- High Pressure Sealing
- Pneumatic Lid Closing / Opening System With Safety Frame
- Other Sealing Width (10mm)
- Bi-Active Impulse Sealing System (Top & Bottom Heating)
- Digital Pressure Gauge

- Vacuum Pressure Control Option
- Other Voltage Configuration
